18” Cut-Off Saw Machine for Industrial Wood Cutting Work

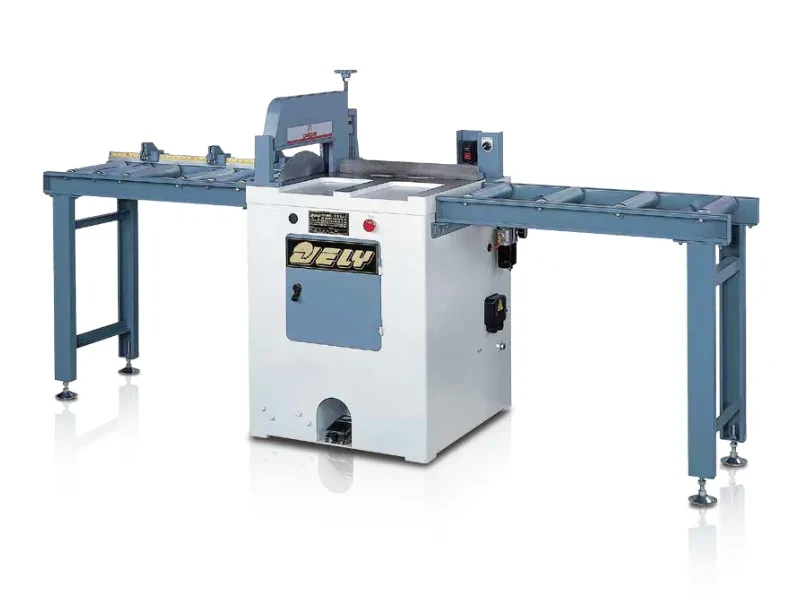

18” Cut-Off Saw
Type：CSL-18
Maximum Stability ! Comprehensive Safety Guards ! High Productivity !
Outstanding Features
• It can be choice by your behavior to use the right hand or left hand for feeding material on this 18” cut off saw machine.
• A foot-activated pneumatic controlled cutting acting and numerous safeties protecting devices combine to make this one of the easiest and safest industrial cut-off machines.
• Extension roller stand can be made to your required length on both sides for feeding the work pieces.
• Double starting switches and automatic stop switch can be added as optional accessory.

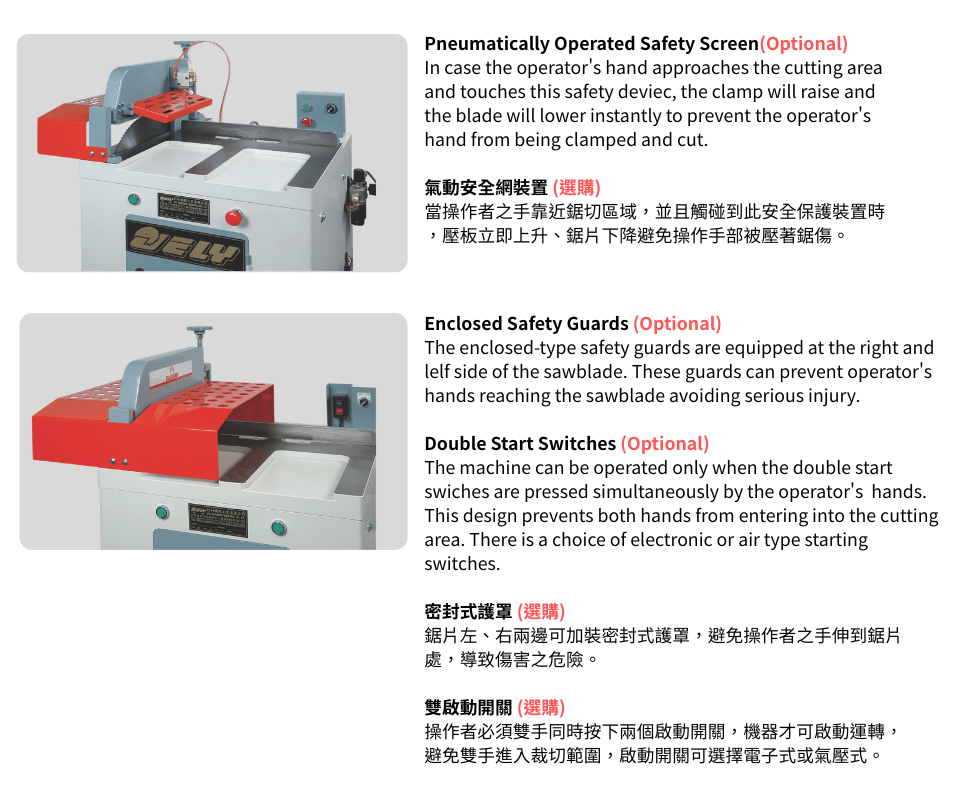

• Also available to enclosed with safety guards or a pneumatically safety screen device for the optional accessory.
• The side door can be opened for convenient saw blade replacement, and also the power will be shut off immediately by the limit switch.
Specifications
| MODEL | CSL-18 | CSR-18 |
|---|---|---|
| Feeding direction | Saw blade at LH | Saw blade at RH |

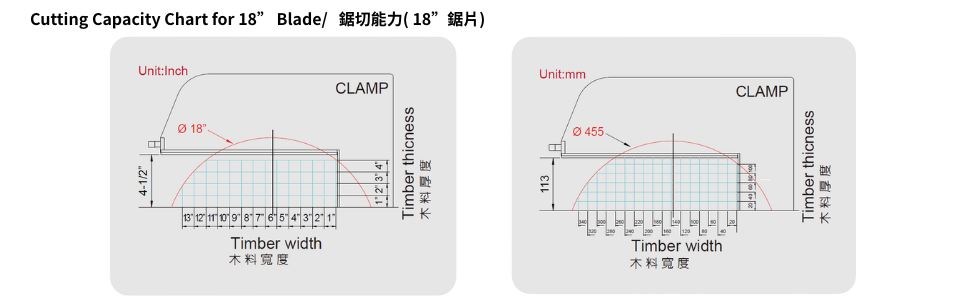

| Saw blade size | 18" x φ1" x 3.4 mm x 120T (455 x φ25.4 mm x 3.4 mm x 120T) | |
| Motor | 7.5 HP(2P) (5.6kW) | |
| Saw arbor speed | 3,320 RPM | |
| Cutting speed | 45 cuts / min | |
| Table size | 660 x 700 mm (26" x 27.5") | |
| Table height from floor | 830 mm (32.6") | |
| Air pressure required | 5 kg / cm² (71 psi / 5 bar) | |
| Packing size (L x W x H) | 830 x 910 x 1,300 mm | |
| N.W. / G.W . | 360 kgs / 400 kgs | |
| OPTIONAL ACCESSORY | ||
| MODEL | CSL-18 | CSR-18 |
| Roller table required | Length can be made from 3 ft to 10 ft | |
| Saw blade | 18" | |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
