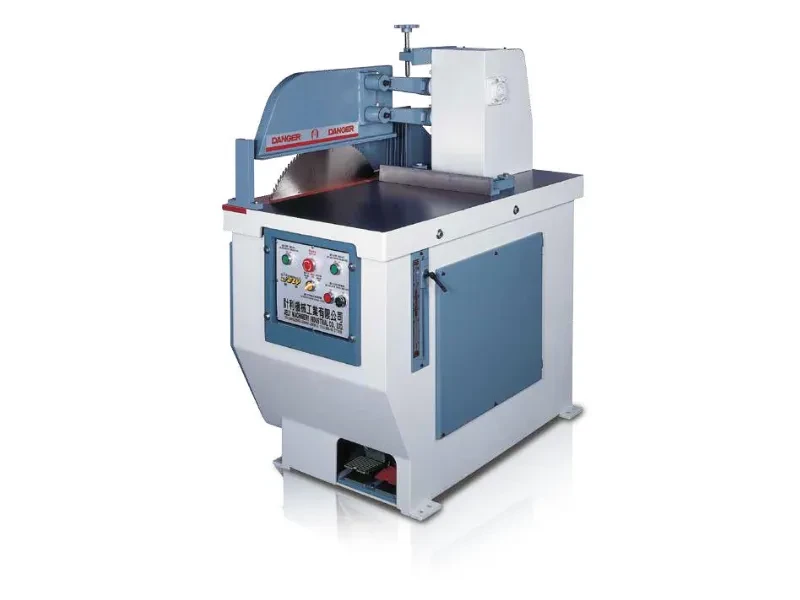

24”, 26” Cut-Off Saw
24”, 26” Cut-Off Saw
Type：JSL-24P/JSL-26P
Extra Big Cutting Capacity! 10HP Motor Drive !
Outstanding Features
• It can be choice by your behavior to use the right hand or left hand for feeding materials.
• Extension roller stand can be made as your required length at both sides for feeding the work pieces.
• Double starting switches are equipped with optional accessory to ensure the operator using both R/H and L/H at the same time to start for further safety confirmation.
• The side door can be opened for convenient sawblade replacement and also the power will be shut off immediately by the limit switch.

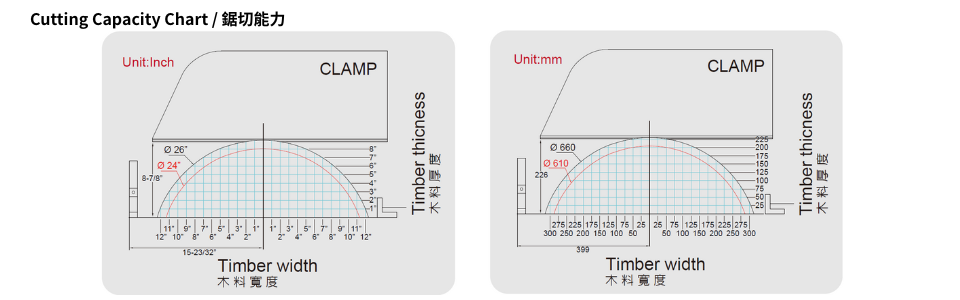

• The thickness of cutting capacity can be adjusted by an easy handle.
Specifications
| MODEL | JSL-24P / JSL-26P | JSR-24P / JSR-26P |
|---|---|---|
| Feeding direction | Saw blade at LH | Saw blade at RH |
| Saw blade size | 24" x φ1" x 4.0 mm x 120T (610 x φ25.4 mm x 4.0 mm x 120T) 26" x φ1" x 4.0 mm x 120T (660 x φ25.4 mm x 4.0 mm x 120T) |
|
| Motor | 10 HP(4P) (7.5kW) | |
| Saw arbor speed | 2,000 RPM | |
| Cutting speed | 20 cuts / min | |
| Table size | 630 / 1,150 mm (24.8" x 45.2") | |
| Table height from floor | 860 mm (33.8") | |
| Air pressure required | 5 kg / cm² (71 psi / 5 bar) | |
| Packing size (L x W x H) |
1,270 x 780 x 1,480 mm / 850 x 1,300 x 1,510 mm |
1,310 x 850 x 1,510 mm / 850 x 1,300 x 1,510 mm |
| N.W. / G.W . | 550 kgs / 600 kgs ; 572 kgs / 658 kgs | 510 kgs / 550 kgs ; 532 kgs / 618 kgs |
| OPTIONAL ACCESSORY | ||
| MODEL | JSL-24P / JSL-26P | JSR-24P / JSR-26P |
| Roller table required | Length can be made from 3 ft to 10 ft | |
| Saw blade | 24" or 26" | |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
