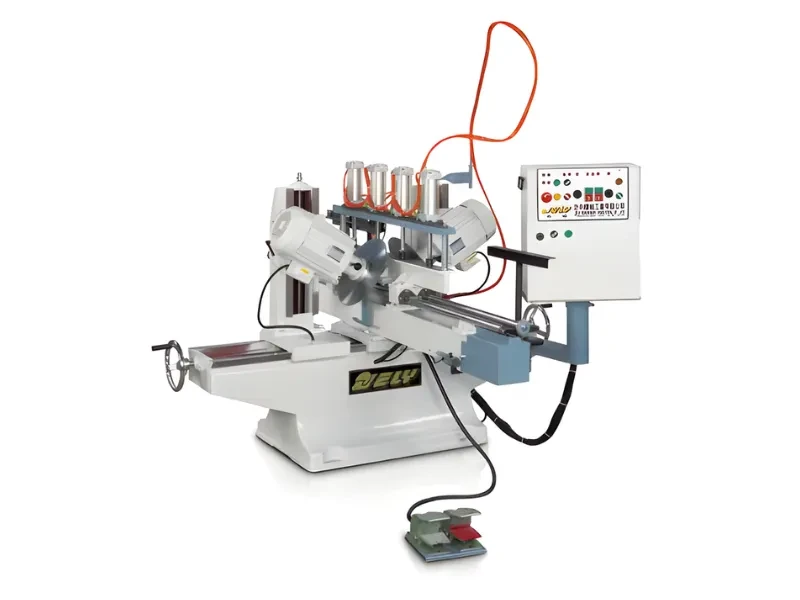

Automatic Double End Sawing Machine for Hexagonal or Octogonal Spindle Shaping
Automatic Double End Sawing Machine for Hexagonal or Octogonal Spindle Shaping
Type：CS-123ANTOutstanding Features
• Combination doubles sawing construction.
• Double sides sawing to set up fixed length at one time easily.
• Operating with automatic outfeed for standard accessory.
• Operating with automatic top and side clamping for standard accessory.
• Japanese made NB ball bearing guide rail provides high operating accuracy.

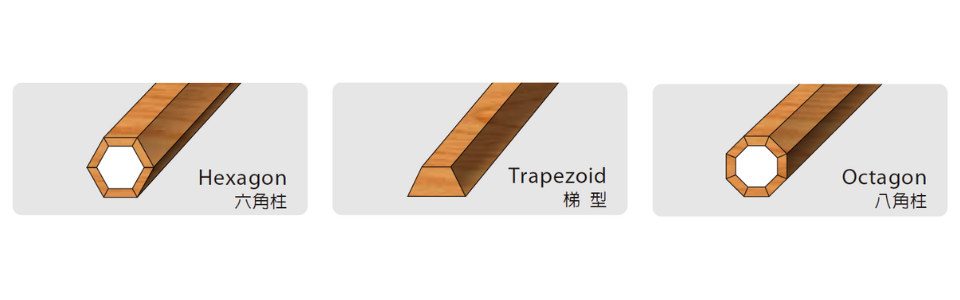

Applications
Specifications
| MODEL | CS-123ANT |
|---|---|
| Numbers of rail | 1 |
| Diameter of saw | 10" ~ 12" |
| Maximum process in width | 960 mm / 38" |
| Maximum process in length | 50 mm / 2" |
| Spindle tilting angle | 360˚ |
| Numbers of saw motor | 3 HP (2P) x 2 PCS |
| Saw spindle running speed (50 / 60 HZ) |
3,000 RPM |
| Transmission motor | 3/4 HP , 2P / 4P x 1 PC |
| Packing size (L x W x H) | 480 x 22.5 x 136 cm |
| N.W. / G.W . | 500 kgs / 700 kgs |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
