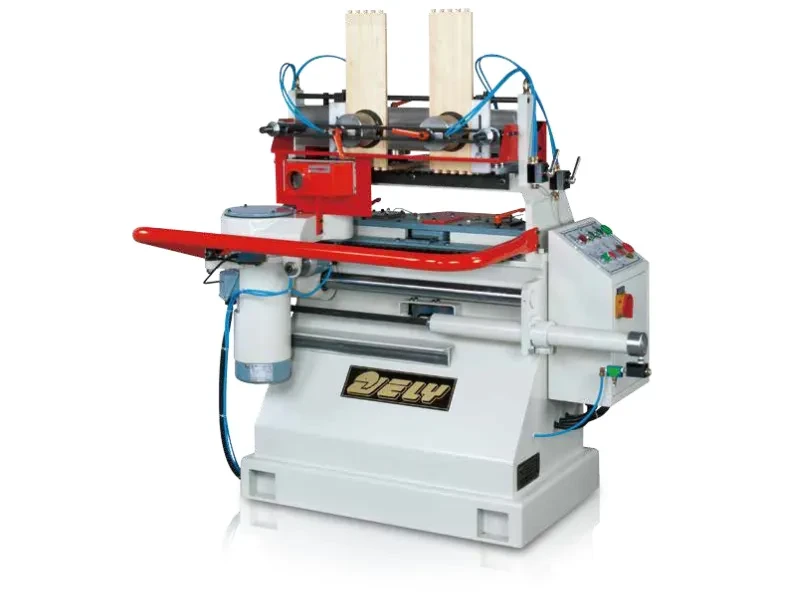

Auto Dovetail Tenoner
Auto Dovetail Tenoner
Type：JDT-75Outstanding Features
• Automatic dovetail which is ideal for producing dovetail drawer boxes for kitchen cabinet & furniture production.
• 21500 RPM spindle rotation for an extremely fine finish on dovetail joints.
• High RPM spindle allows for precision machining of plywood & solid drawer sides.
• Independent adjustment of both the tenon & the mortise depth for precise fitting of dovetail joints.
• Safety guard of spindle is with the dust hood for milling cutter, that and safety rail in front of spindle motor are stander equipment.
• High quality pneumatic components and special cast iron material ensures high stability and prevents vibration during cutting.

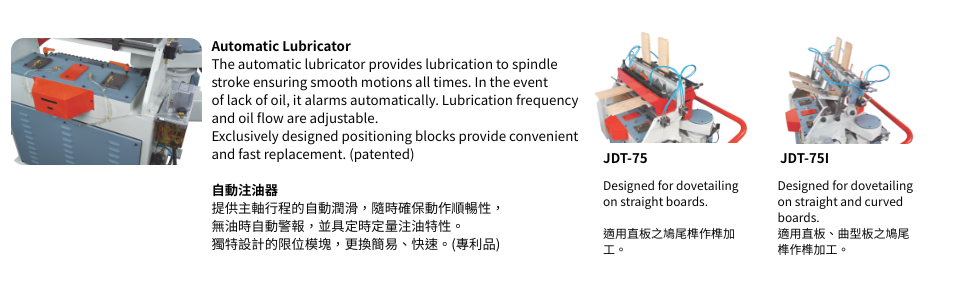

• Automatic continue working switches and lubrication are standard, that eliminate downtime and increase machine life.
• 3 cycle speeds for best finish results (16T, 22T, and 31T / min).

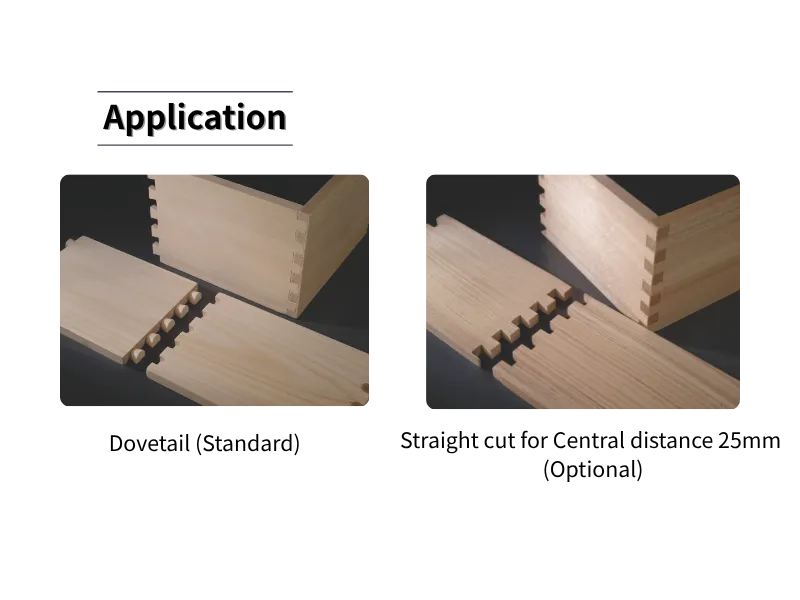

Applications
Specifications
| MODEL | JDT-75 | JDT-75I |
|---|---|---|
| Suitable | Straight board | Straight and curved board |
| Working length capacity | 200 ~ 1,500 mm / 7-7/8" ~ 59"(Single board) | |
| Working width capacity | 60 ~ 430 mm / 2-3/8" ~ 17"(Single board) | |
| Vertical board thickness | 7 ~ 60 mm (9/32" ~ 2-3/8" ) | |
| Horizontal board thickness | 10 ~ 30 mm (3/8" ~ 1-3/16" ) | |
| Dovetail tenon height | 6 ~ 18 mm | |
| Spindle motor | 2 HP(2P) (1.5kW) | |
| Spindle speed | 21,500 RPM | |
| Feed motor | 2 HP(4P) (1.5kW) | |
| Air pressure required | 5 kg / cm² (71 psi / 5 bar) | |
| Center-to-center dovetail space | 25 mm (Standard) | |
| Numbers of cutter | 1 pc (Two flute bits) | |
| Feed rate (3 speed) | 16T, 22T, 31T / min | |
| Cutter shank size | φ12mm | |
| Dust collection port diameter | φ63.5mm (φ2-1/2") | |
| Packing size (L x W x H) | 1,410 x 880 x 1,410 mm(55" x 35" x 55") | |
| N.W. / G.W . | 450 kgs / 550 kgs(992 Ibs / 1212.5 Ibs) | |
| OPTIONAL ACCESSORY | ||
| MODEL | JDT-75 | JDT-75I |
| Center-to-center tenon space | 22 / 25 / 30 mm | |
