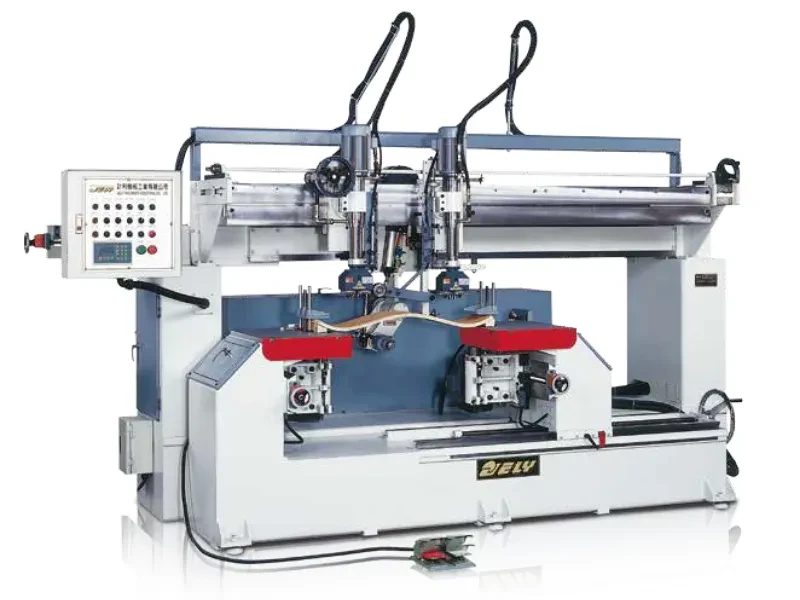

Automatic Drawer Front Dovetailing and Boring Machine

Type：JDB-90 / JDB-150

Automated, Versatile and Highly Efficient !

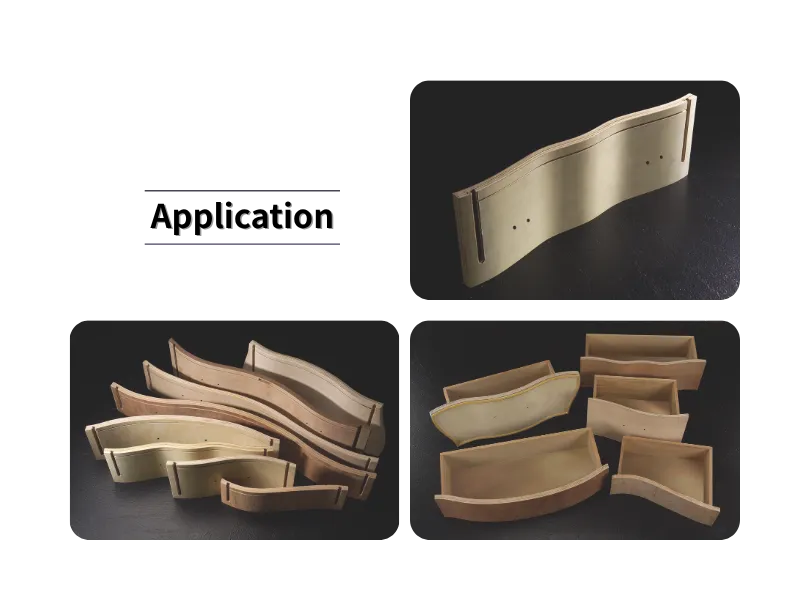

• This model is designed for dovetailing and boring operations on curved and flat wood board for drawer fronts.

• Equipped with a PLC controller for automatic operation control. It features automatic operation to enormously upgrading production efficiency.

• Except for workpiece air clamping, all machine motions are fully hydrauli-cally operated.

• Foot switch provides operators with convenient control for machine stop and start.

• All slideways are automatically lubricated.

• The vertical spindles and boring mechanism have mechanical meters, ensur-ing accurate positioning adjustment.

• No need the tooling to operate, and three spindles can individual operation.

MODEL		JDB-90	JDB-150
WORKING CAPACITY	Board type	Curved / Flat
	Workpiece length	200 ~ 900 mm	200 ~ 1,500 mm
	Workpiece thickness	12~50 mm
	Workpiece width	100~480 mm

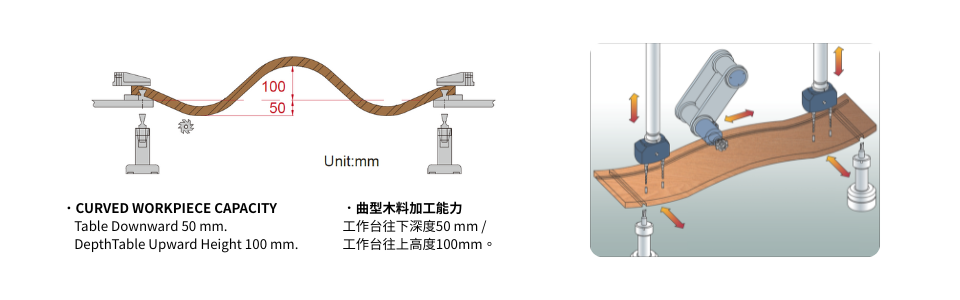

	Curved workpiece	Table downward 50 mm. Depth table upward height 100 mm.
HORIZONTAL SPINDLE	Blade diameter	φ54 mm x 3.5 mm / φ54 mm x 4.0 mm
	Spindle diameter	φ10mm
	Travel distance	900 mm	1,500 mm
	Motor	3 HP x 1
	Spindle speed	12,000 RPM
VERTICAL SPINDLE	Spindle travel distance	300 mm
	Tool shank	φ12 mm ~ φ16 mm
	Motor	3 HP x 2
	Spindle speed	18,000 RPM
BORING HEAD	Adjustable 2-spindles	Adjustable distance between spindles : 26 ~ 126 mm
		Maximum boring capacity : 30 mm
		Tilts：±15°
	Distance between two spindles	300 ~ 900 mm	300 ~ 1,500 mm
	Vertical stroke	120 mm
	Boring motor	1 HP x 2
	Motor speed	2,800 RPM
LEFT AND RIGHT TABLE	Clamp height	130 mm
	Table height from floor	950 mm
	Air pressure required	6 kg / cm² (85 psi / 6 bar)
HYDRAULIC SYSTEM	HORIZONTAL and VERTICAL SPINDLE		FLUID TANK CAPACITY	90 liters
	Hydraulic pump motor	3 HP x 1
	BORING MECHANISM
	Hydraulic pump motor	1 HP x 1
PACKING INFORMATION	Machine dimensions	2,820 x 1,900 x 2,500 mm	4,000 x 1,900 x 2,500 mm
	Packing size(L x W x H）	2,930 x 1,990 x 2,080 mm	4,050 x 2,000 x 2,280 mm
	N.W./G.W.	2,870 kgs / 3,070 kgs	3,500 kgs / 3,860 kgs

JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary..
