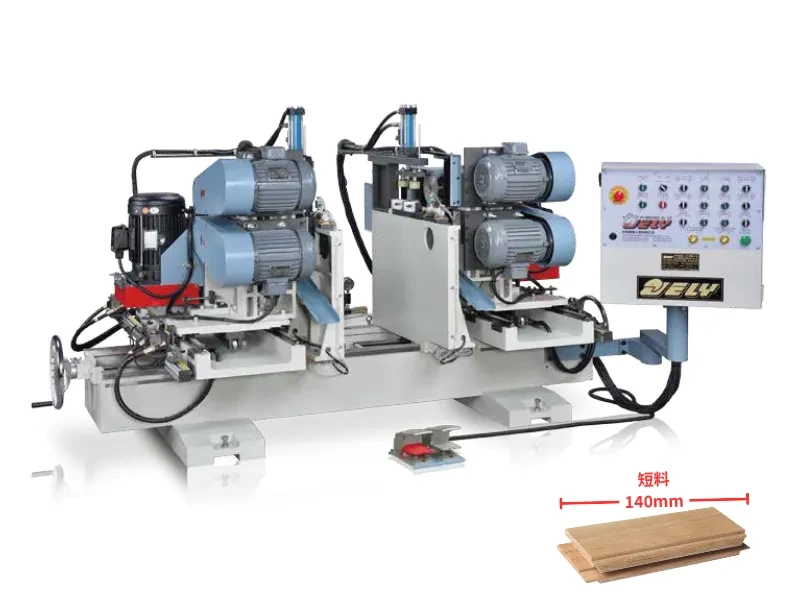

Automatic Hydraulic Double End Sawing & Shaping Machine

Type：TSS-1000+2/ TSS-1000+4

Shortest Double End Working Machine!

• The machine is specialized shortest double ends cutting and shaping machine.

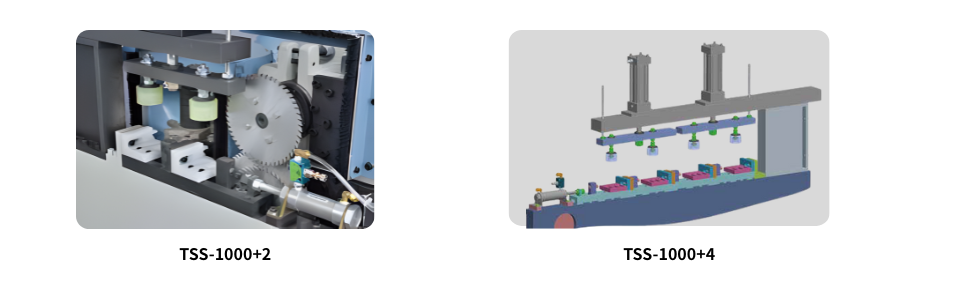

• All of operating and vertical clamping are driven by hydraulic working.

• This is with foot switches provide operators with convenient control for machine immediately stop and resetting star.

• Using the Germany made linear bear provides highest operation accuracy.

• The machine for the operation of walking knife mode, the workpiece fixd, processing quality more accurate.

• Automatic continue working switches and lubrication are standard, that eliminate downtime and increase machine life.

MODEL	TSS-1000+2	TSS-1000+4
Working length	125 mm ~ 1,000 mm(Min to Max.)
Working width- for narrow size	50 ~ 56 mm	50 ~ 75 mm
Working width- for wide size	100 ~ 105 mm	80 ~ 110 mm
Number of clamps	2 pcs	4 pcs
Sawblade motor	2 HP x 2	2 HP x 4
Sawblade spindle diameter	φ25.4 mm(1")
Availabe size for sawblade	6" ~ 8"
Shaper motor	7-1/2 HP x 2
Shaper spindle diameter	φ40 mm
Hydraulic motor	2 HP x 2
Machine size	2,260 x 1,500 x 1,370 mm	2,990 x 1,730 x 1,620 mm
N.W. / G.W .	2,140 kgs / 2,220 kgs	3,340 kgs / 3,540 kgs

With：Both sawing rails using Germany made REXROTH-BOSCH liner rail.
With：Automatic lubrication system for the liner rail.

JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
