Automatic Length Cutting and Feeding Machiney Automatic Length Cutting and Feeding Machiney (Suit for Composite Floor Use)
Automatic Length Cutting and Feeding Machiney (Suit for Composite Floor Use)

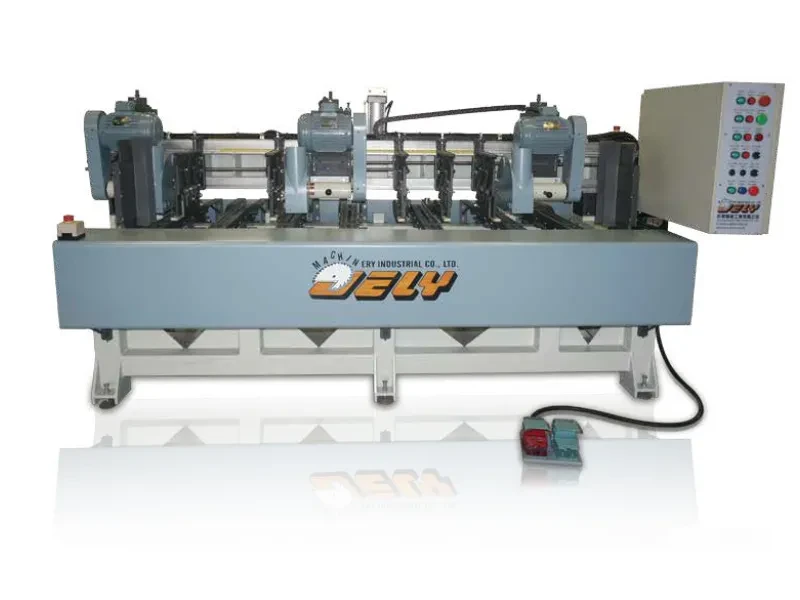

Type：CS-1200A
The Most Efficient for Cutting Flat board!
Outstanding Features
• The machine is for flat board cutting machine.
• The machine is automatic for flat feeding and exits the board.
• The feeding part can adjusting the speed.
• Foot switch provides operators with convenient control for machine stop and start.
• The CS-1200A is with automatic clean and lubrication system for the chain.
Applications
Specifications
| MODEL | CS-1200A |
|---|---|
| Working length | 1,200 mm ~ 2,245 mm |
| Working width | 110 mm ~ 210 mm |
| Working thickness | 9.5 mm ~ 14 mm |
| Saw spindle diameter | 25.4 mm (1inch) |
| Sawblade size | 10 inch |
| Sawblade amount | 3 |
| Sawblade motor | 2 HP x 3 |
| Feeding motor | 1 HP x 1 |
| Working efficiency | 10 pcs / min ~ 30 pcs / min |
| Packing size (L x W x H) | 3,700 x 2,100 x 1,600 mm |
| N.W. / G.W . | 2,430 kgs / 2,560 kgs |
|
With：Auto. Banish Dust. |
|
| OPTIONAL ACCESSORY | |
| MODEL | CS-1200A |
| Sawblade | 1 |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
