Auto,Single End Bevel Tenoner
Auto,Single End Bevel Tenoner

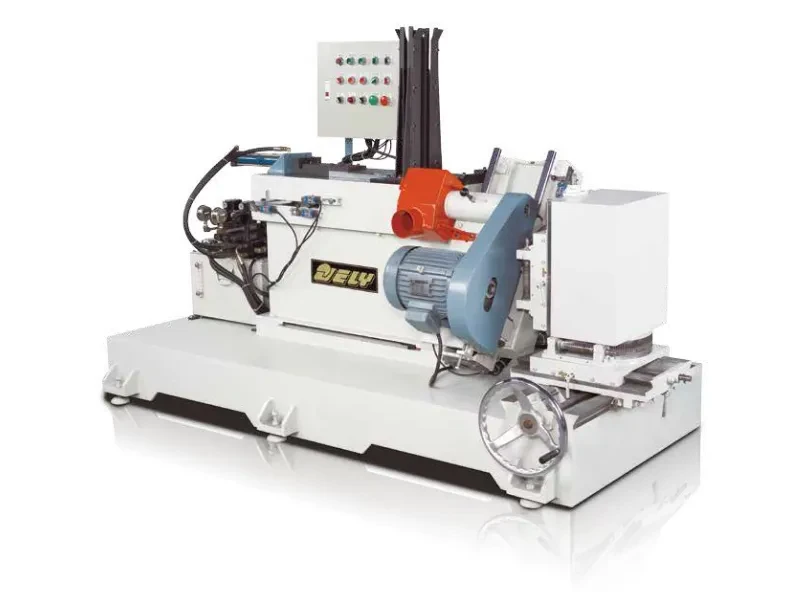

Type：JST-12AR(L)Outstanding Features
• It is designed by centralized control panel which concentrated most operating with easily setting and convenient processes. It features automatic operating to enormously upgrading production efficiency.
• All of functions operating and clamping are driven by oil pressure.
• JST-12AR / JST-12AL is designed for single end bevel tenoner, the both enter and exit of feeding material are established an automatic system that speed up sharply for the work piece processing efficiency and high criterion safety.
• Convenient design is also enclosed with an ancillary counter which allows realizing the number of finished work pieces easily.
• The main body of JST-12AR / JST-12AL is made by accurate cast iron and solid steel; the spindle tracking system is also made by high quality of steel guide rod and liner ball bearing which extend the life of machinery stability.
• The vertical spindle can be adjusted smoothly from 17° to 60° degrees by a turbine engine.

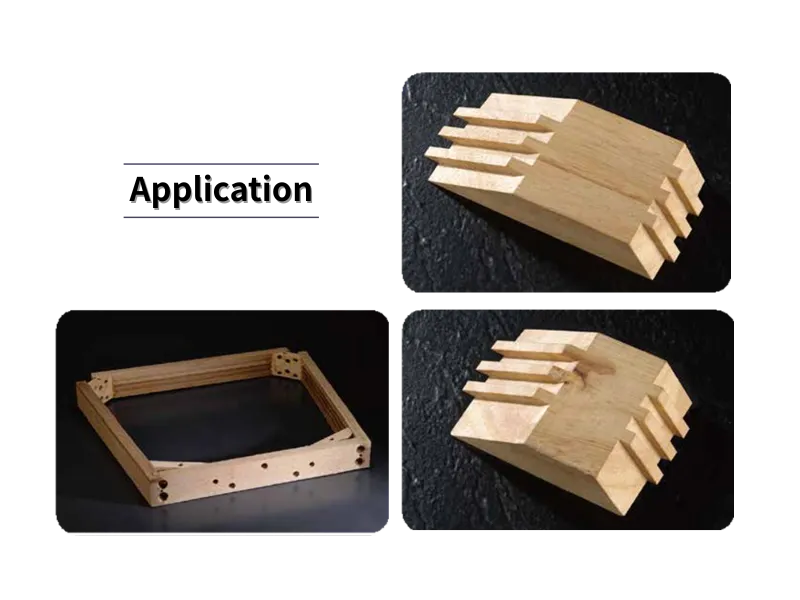

Applications
Specifications
| MODEL | JST-12AR | JST-12AL |
|---|---|---|
| Max. height for work pieces | 30 mm | |
| Min. height for work pieces | 20 mm | |
| Max. widtht for work pieces | 100 mm | |
| Min. widtht for work pieces | 30 mm | |
| Max. length for raw material | 150 mm | |
| Min. length for raw material | 95 mm | |

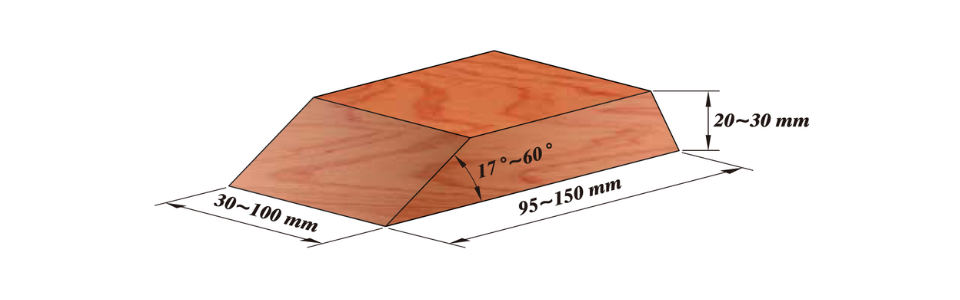

| Adjusted angle for work piece | 17˚ ~ 60˚ | |
| Cutting main spindle | φ40 mm | |
| Spindle motor | 7.5 HP (4P) | |
| Spindle r.p.m. | 9,000 RPM | |
| Production speed | 6 times / min | |
| Hydraulic motor | 2 HP (4P) | |
| Machine size | 2,400 x 1,300 x 1,525 mm | |
| Packing size (L x W x H) | 2,450 x 1,600 x 1,525 mm | |
| N.W./G.W. | 1,550 kgs / 1,670 kgs | |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
