Automatic Type Down Double End Sawing & Shaping Machine (with automatic fixing and top clamping system)
Automatic Type Down Double End Sawing & Shaping Machine(with automatic fixing and top clamping system)

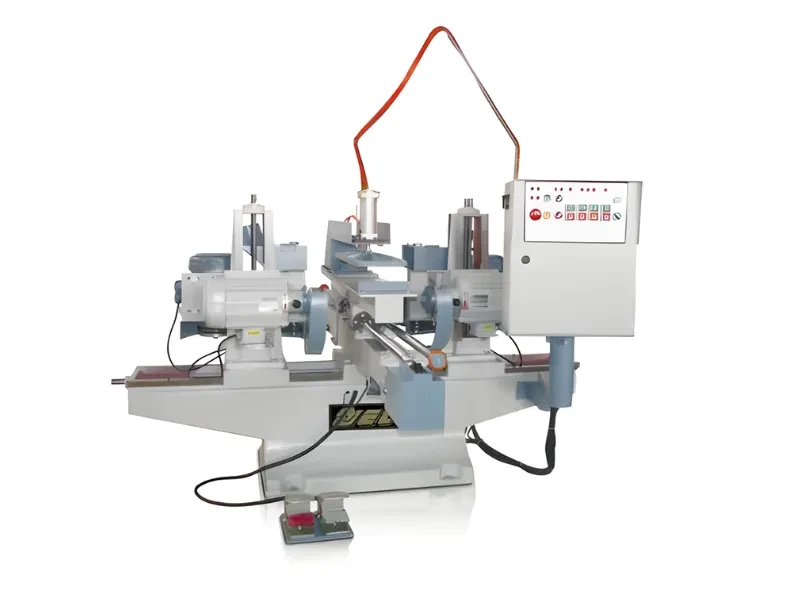

Type：CSS-123ANOutstanding Features
• Combination double sawing with shaper construction.
• Double sides sawing and sharper to set up fixed length at one time easily.
• Double rails design for more stability specially suit for working length over 4 feet.
• Operating with automatic top and side clamping for standard accessory.
• Japanese made NB ball bearing guide rail provides high operating accuracy.
Specifications
| MODEL | CSS-123AN | CSS-124AN | CSS-224AN | CSS-225AN | CSS-226AN | CSS-227AN | CSS-228AN |
|---|---|---|---|---|---|---|---|
| Numbers of rail | 1 | 1 | 2 | 2 | 2 | 2 | 2 |
| Diameter of saw | 10" ~ 12" | ||||||
| Maximum process in width | 508 mm / 20" | ||||||
| Range of process in length | 215 ~ 915 mm 8-1/2" ~ 36" |
215 ~ 1,220 mm 8-1/2" ~ 48" |
445 ~ 1,220 mm 17-1/2" ~ 48" |
445 ~ 1,525 mm 17-1/2" ~ 60" |
445 ~ 1,830 mm 17-1/2" ~ 72" |
445 ~ 2,135 mm 17-1/2" ~ 84" |
445 ~ 2,440 mm 17-1/2" ~ 96" |
| Spindle tilting angle | 360˚ | ||||||
| Numbers of saw motor | 2 HP (2P) x 2 PCS or (Optional accessory： 3 HP (2P) x 2 PCS) | ||||||
| Saw spindle running speed (50 / 60 HZ) |
3,000 RPM | ||||||
| Numbers of shaper motor | 3 HP (2P) x 2 PCS or (Optional accessory： 5 HP (2P) x 2 PCS) | ||||||
| Shaper spindle diameter | 30 mm or (Optional accessory： 40 mm) | ||||||
| Shaper spindle running speed | 7,200 RPM | ||||||
| Transmission motor | 3/4 HP , 2P / 4P x 1 PC | ||||||
| Top air claming system | W / (Standard accessory) | ||||||
| Packing size (L x W x H) |
210 x 95 x 135 cm | 210 x 95 x 135 cm | 210 x 105 x 135 cm | 235 x 105 x 135 cm | 265 x 105 x 135 cm | 300 x 105 x 135 cm | 330 x 105 x 135 cm |
| N.W. / G.W . | 820 kgs / 890 kgs | 860 kgs / 930 kgs | 960 kgs / 1,030 kgs | 1,230 kgs / 1,320 kgs | 1,270 kgs / 1,360 kgs | 1,285 kgs / 1,375 kgs | 1,320 kgs / 1,410 kgs |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
