Automatic Type Up and Bottom Double End Sawing & Shaping Machine

Type：CSS-228ASN

CSS-123ASN / CSS-124ASN / CSS-224ASN / CSS-225ASN / CSS-226ASN / CSS-227ASN / CSS-228ASN

• Combination top and bottom sawing with shaper construction.

• Double sides sawing and sharper to set up fixed length at one time easily.

• Double rails design for more stability specially suit for working length over 4 feet.

• Operating with automatic top and side clamping for standard accessory.

• Japanese made NB ball bearing guide rail provides high operating accuracy.

MODEL	CS-123ASN	CSS-124ASN	CSS-224ASN	CSS-225ASN	CSS-226ASN	CSS-227ASN	CSS-228ASN
Numbers of rail	1	1	2	2	2	2	2
Diameter of saw	10" ~ 12"
Maximum process in width	508 mm / 20"
Range of process in length	215 ~ 915 mm 8-1/2" ~ 36"	215 ~ 1,220 mm 8-1/2" ~ 48"	445 ~ 1,220 mm 17-1/2" ~ 48"	445 ~ 1,525 mm 17-1/2" ~ 60"	445 ~ 1,830 mm 17-1/2" ~ 72"	445 ~ 2,135 mm 17-1/2" ~ 84"	445 ~ 2,440 mm 17-1/2" ~ 96"
Spindle tilting angle	360˚
Numbers of saw motor	2 HP (2P) x 4 PCS or (Optional accessory： 3 HP (2P) x 4 PCS)
Saw spindle running speed (50 / 60 HZ)	3,000 RPM
Numbers of shaper motor	3 HP (2P) x 2 PCS or (Optional accessory： 5 HP (2P) x 2 PCS)
Shaper spindle diameter	30 mm or (Optional accessory： 40 mm)
Shaper spindle running speed	7,200 RPM
Transmission motor	3/4 HP , 2P / 4P x 1 PC
Top air claming system	W / (Standard accessory)
Packing size (L x W x H)	225 x 95 x 133 cm	205 x 100 x 133 cm	225 x 105 x 133 cm	235 x 100 x 130 cm	265 x 105 x 130 cm	300 x 105 x 135 cm	330 x 105 x 133 cm
N.W. / G.W .	900 kgs / 1,150 kgs	900 kgs / 1,150 kgs	1,250 kgs / 1,350 kgs	1,420 kgs / 1,520 kgs	1,450 kgs / 1,550 kgs	1,450 kgs / 1,550 kgs	1,480 kgs / 1,580 kgs

JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.

Image	Product Name

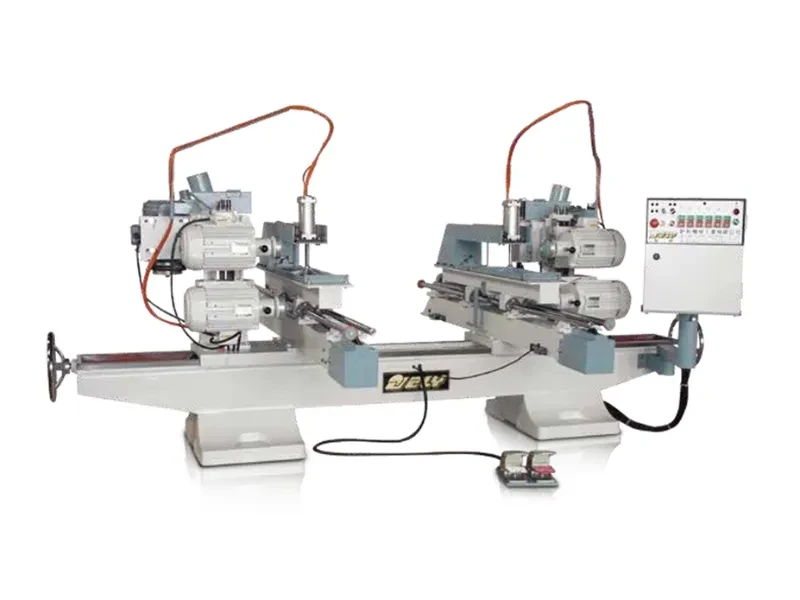

	Automatic Type Up and Bottom Double End Sawing & Shaping Machine CSS-228ASN
