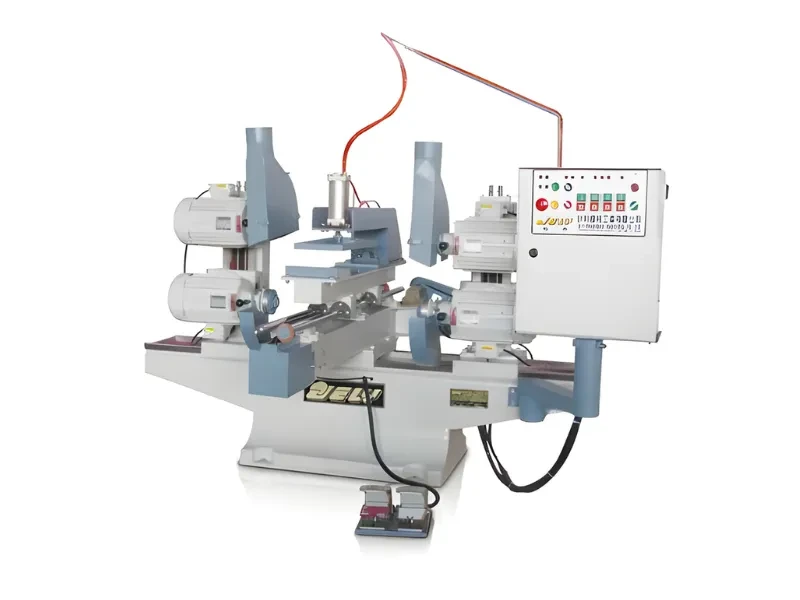

Automatic Type Up and Bottom Double End Sawing Machine (with automatic fixing and top clamping system)
Automatic Type Up and Bottom Double End Sawing Machine(with automatic fixing and top clamping system)
Type：CS-124ASNOutstanding Features
• Combination top and bottom sawing construction.
• Double sides sawing to set up fixed length at one time easily.
• Double rails design for more stability specially suit for working length over 4 feet.
• Operating with automatic top and side clamping for standard accessory.
• Japanese made NB ball bearing guide rail provides high operating accuracy.
Specifications
| MODEL | CS-123ASN | CS-124ASN | CS-224ASN | CS-225ASN | CS-226ASN | CS-227ASN | CS-228ASN |
|---|---|---|---|---|---|---|---|
| Numbers of rail | 1 | 1 | 2 | 2 | 2 | 2 | 2 |
| Diameter of saw | 10" ~ 12" | ||||||
| Maximum process in width | 508 mm / 20" | ||||||
| Range of process in length | 215 ~ 915 mm 8-1/2" ~ 36" |
215 ~ 1,220 mm 8-1/2" ~ 48" |
445 ~ 1,220 mm 17-1/2" ~ 48" |
445 ~ 1,525 mm 17-1/2" ~ 60" |
445 ~ 1,830 mm 17-1/2" ~ 72" |
445 ~ 2,135 mm 17-1/2" ~ 84" |
445 ~ 2,440 mm 17-1/2" ~ 96" |
| Spindle tilting angle | 360˚ | ||||||
| Numbers of saw motor | 2 HP (2P) x 4 PCS or (Optional accessory： 3 HP (2P) x 4 PCS) | ||||||
|
Saw spindle running speed (50 / 60 HZ) |
3,000 RPM | ||||||
| Transmission motor | 3/4 HP , 2P / 4P x 1 PC | ||||||
| Top air claming system | W / (Standard accessory) | ||||||
|
Packing size (L x W x H) |
210 x 95 x 135 cm | 210 x 95 x 135 cm | 210 x 105 x 135 cm | 235 x 105 x 135 cm | 265 x 105 x 135 cm | 300 x 105 x 135 cm | 325 x 105 x 135 cm |
| N.W. / G.W . | 790 kgs / 855 kgs | 810 kgs / 875 kgs | 910 kgs / 975 kgs | 980 kgs / 1,080 kgs | 1,025 kgs / 1,125 kgs | 1,045 kgs / 1,145 kgs | 1,280 kgs / 1,380 kgs |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
