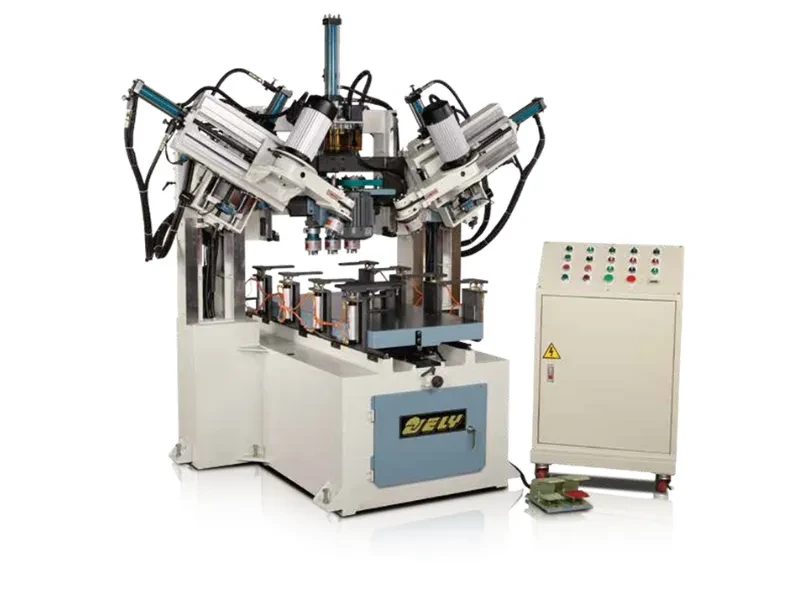

Chair Back Boring Machine
Outstanding Features
• This is the most perfect machine to do boring job for the back of a chairs in the market.
• All of the machine motion controls are centralized on a control panel for maximum operational convenience. The machine employs a PLC control for automatic operations. It upgrades operational convenience and efficiency.
• Besides the clamping of JBDI-2+3 is designed by pneumatic pressure, the others operations are all driven by oil pressure for vertical and double bevel angle boring.
• The machine with 8 clamps. Each clamp can adjust the height depend on the chair back shape.
• The both vertical and double bevel angle boring can be set by consistently or separately depends on different operating required.
• JBDI-2+3 is attached with control panel and pedal switch for easier operating and better efficiency.
• The main body of JBDI-2+3 is made by accurate cast iron and solid steel; the boring tracking system is also made by high quality of steel guide rod and liner ball bearing; the main table system is made by high quality of linear guides which can extend the life of machine stability.
• The angle of double side of bevel boring head can be easily adjusted from 0° to 45° by turbine engine.
• All of the boring speeds can be individually revised by different timber characteristic.
• Automatic continuous working switches and lubrication are standard, that eliminating downtime and increase machine life.

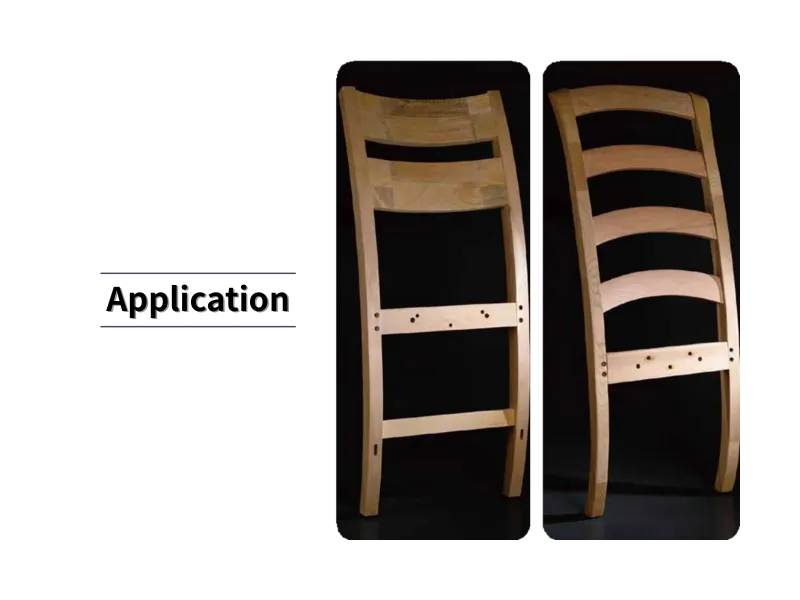

Applications
Specifications
| MODEL | JBDI-2+3 | |
|---|---|---|
| Auxiliary table | Max. height | 190 mm |
| Min. height | 130 mm | |
| Vertical boring | Numbers of spindle | 3 |
| Motor | 2 HP | |
| Stroke distance | 100 mm | |
| Spindle speed | 2,400 RPM | |
| Both sides of bevel boring | Motor | 2 HP x 2 |
| Stroke distance | 100 mm | |
| Rotate angle | 0˚ ~ 45˚ | |
| Boring speed | 3,600 RPM | |
| Main table | Table size | 560 mm x 1,300 mm |
| Table high from floor | 790 mm | |
| Production speed | 3 times / min | |
| Air pressure required | 5 kg / cm² (71 psi / 5 bar) | |
| Hydraulic pump motor | 2 HP (4P) | |
| Packing | Machine size | 1,800 x 1,650 x 2,180 mm |
| Packing size (L x W x H) | 2,240 x 1,910 x 2,250 mm | |
| N.W. / G.W . | 2,050 kgs / 2,150 kgs | |
