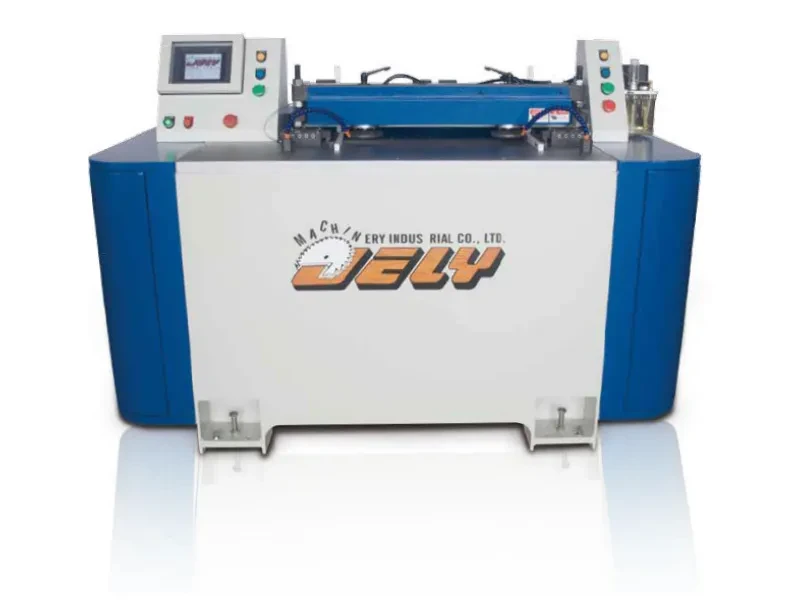

Digital Dovetail Tenoner

• Both X and Y axial are using Germany made REXROTH-BOSCH liner rail.

• Both X and Y axial are using high-accurate grinding ballscrew.

• Japanese made YASKAWA server drive and motor controller.

• Japanese made YASKAWA Machine Controller.

• Automatic dovetail which is ideal for producing dovetail drawer boxes for kitchen cabinet & furniture production.

• 20,000 RPM spindle rotation for an extremely fine finish on dovetail joints.

• High RPM spindle allows for precision machining of plywood & solid drawer sides.

• Independent adjustment of both the male and female dovetail of depth and precise fitting for the dovetail joints.

• Safety guard of spindle is with the dust hood for milling cutter that is stander equipment.

• High quality pneumatic components and special cast iron material ensures high stability and prevents vibration during cutting.

• The JDT-600B can be adjusting the processing speed for different wood.

• The automatic lubricator provides lubrication to spindle stroke ensuring smooth motions all times. In the event of lack of oil, it alarms automatically. Lubrication frequency and oil flow are adjustable. That eliminate downtime and increase machine life.

• JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary..
