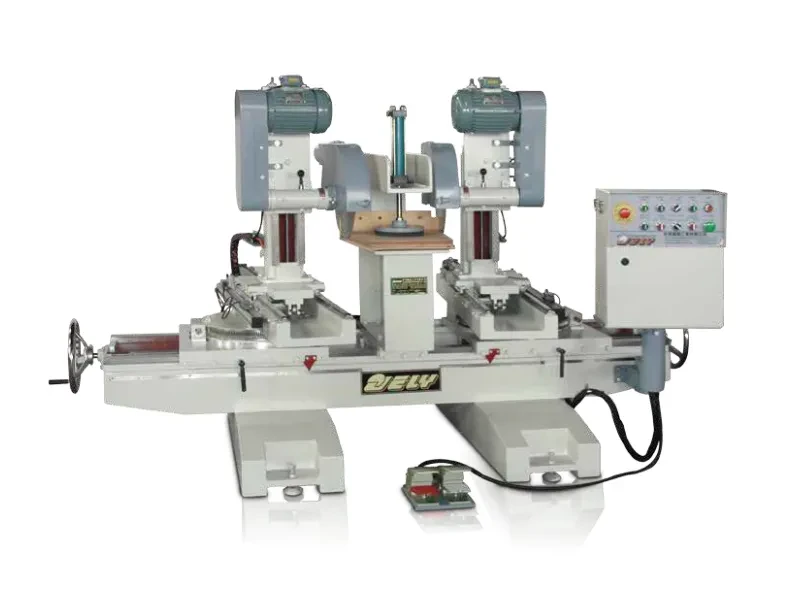

Double End Multiple Sawing Machine
Double End Multiple Sawing Machine
Type：TS-110Outstanding Features
• Both side of saw blade axial are using Germany made REXROTH-BOSCH liner rail.
• Automatic double sides of vertical and horizontal multiple sawing to set up fixed length.
• The both side of sawing can be adjusted smoothly from 0°~45° degrees by turbine engine.
• All of operating and clamping are driven by oil pressure smoothly.
• Foot switch provides operators with convenient control for machines stop and start.
• The main body and rail seat are made by accurate cast iron. That with high quality of manufacture; also the spindles are with high quality of liner ball bearing which can extend the life of machinery stability.
• The automatic lubricator provides lubrication to spindle stroke ensuring smooth motions all times. Lubrication frequency and oil flow are adjustable. That eliminates downtime and increase machine life.
Applications
Specifications
| MODEL | TS-110 |
|---|---|
| Max. working width | 460 mm |
| Max. working length (90˚) | 1,000 mm |
| Min. working length (90˚) | 320 mm |
| Max. working high | 120 mm |
| Diameter of saw | 12" ~ 14" |
| Saw blade horizontal adjustable | 0˚ ~ 45˚ |
| Saw blade vertical adjustable | +25˚ ~ -20˚ |
| Saw blade motor | 5 HP x 2 |
| Saw blade speed | 4,000 RPM |
| Saw blade size | 12" ~14" |
| Saw spindle diameter | 1" (25.4 mm) |
| Table high from floor | 900 mm |
| Hydraulic motor | 2 HP x 1 |
| Machine size | 1,900 x 2,600 x 1,620 mm |
| Packing size (L x W x H) | 2,610 x 1,880 x 1,800 mm |
| N.W. / G.W . | 2,017 kgs / 2,120 kgs |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
