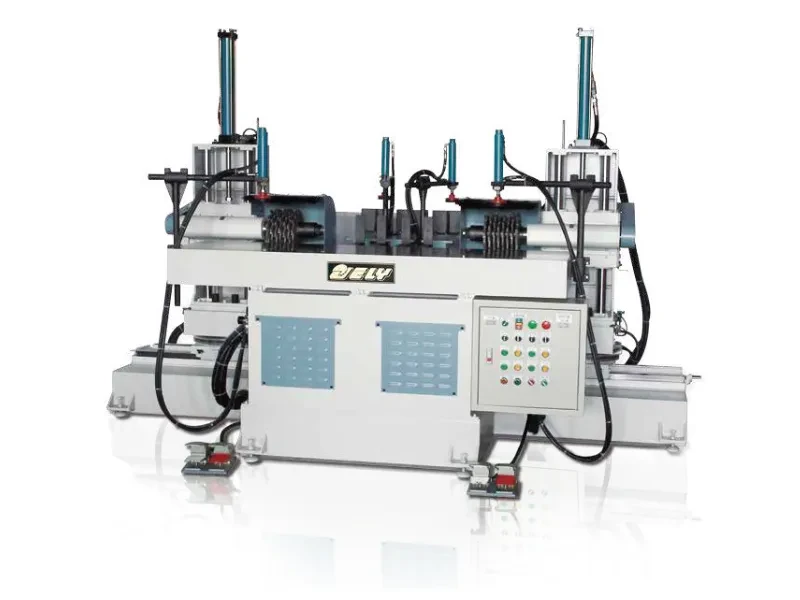

Double End Vertical Shaper
Outstanding Features
This machine is specialized in center and both side angle cutting and shaping for flat board only.
• Both side of shaper can be worked consistently or separately by the Centralized Control Panel.
• All of operating and clamping are driven by oil pressure smoothly.
• Foot switch provides operators with convenient control for machine stop and start .
• Convenient design is also enclosed with an ancillary counter which allows realizing the number of finished work pieces easily .
• The main body of DM-2000 is made by accurate cast iron and solid steel; the spindle tracking system is also made by high quality of steel guide rod and liner ball bearing which can extend the life of machinery stability.

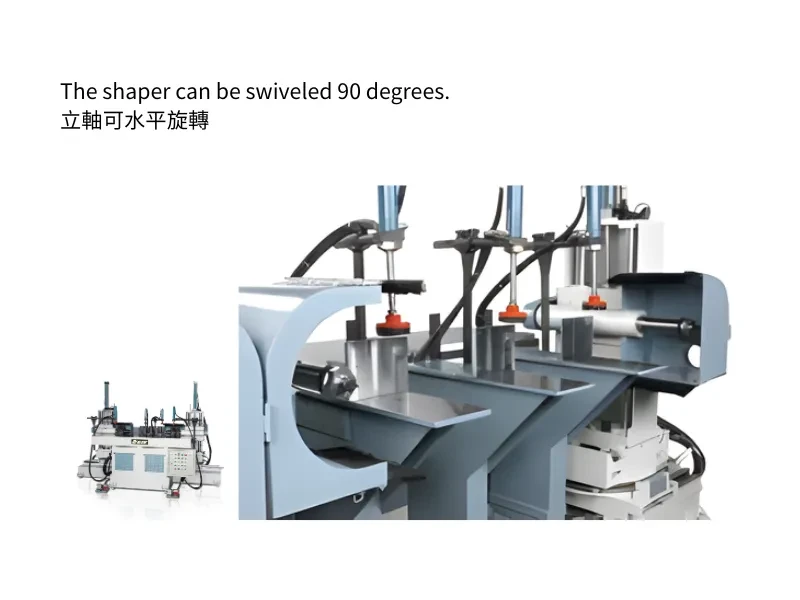

• The two side of shaper can be adjusted smoothly from 0° to 90 ° degrees by turbine engine.
• All of the machine motion controls are centralized on a control panel for maximum operational convenience. The machine employs a PLC control for automatic operations. It upgrades operational convenience and efficiency.

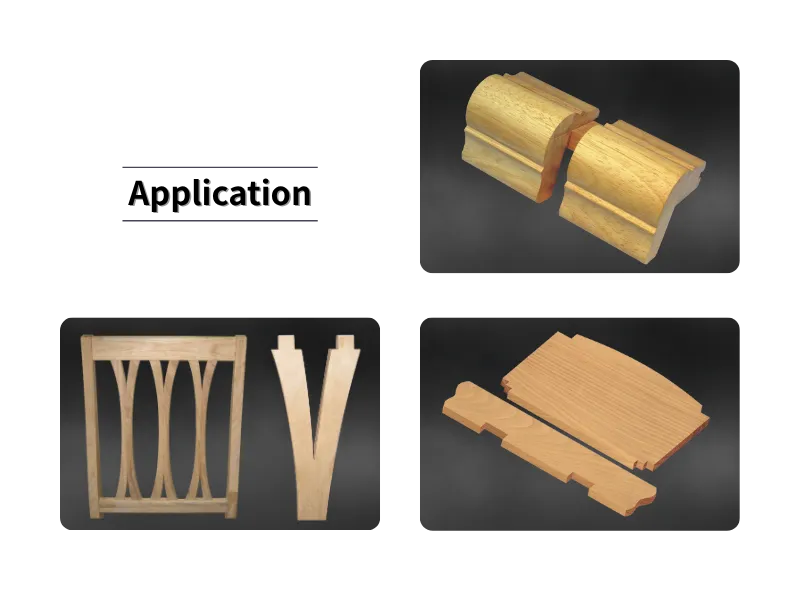

Applications
Specifications
| MODEL | DM-200 | |
|---|---|---|
| Capacity | Board type | Level board |
| Max. wide for work piece | 2,000 mm | |
| Max. tickness for work piece | 250 mm | |
| Max.sharping deep for work piece | 100 mm | |
| Vertical spindle | Blade dimeter | s+d=φ230~320 mm |
| Spindle diameter | φ60 | |
| Travel | 400 mm | |
| Spindle motor | 15 HP (4P) x 2 | |
| Spindle speed | 3,000 RPM | |
| Spindle working length | 220 mm | |
| Vertical adjustion | 0˚ ~ 90˚ | |
| Table | Table size | 2,000 x 500 mm |
| Table hight from floor | 1,035 mm | |
| Clamp | Number of clamps | 4 |
| Hydraulic system | Motor | 5 HP |
| Fluid tank capacity | 90 liters | |
| Packing information | Machine dimensions | 3,570 x 1,955 x 2,240 mm |
| Packing size (L x W x H) | 3,480 x 2,030 x 2,150 mm | |
| N.W. / G.W . | 3,950 kgs / 4,310 kgs |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
