Manual Type Up and Bottom Double End Sawing Machine
Outstanding Features
• Combination top and bottom sawing and cutting with shaper construction.
• Double sides sawing and sharper to set up fixed length at one time easily.
• Double rails design for more stability specially suit for working length over 4 feet.
• Operating with automatic top and side clamping for optional accessory.
• Japanese made NB ball bearing guide rail provides high operating accuracy.
Specifications
| MODEL | CSS-123SN | CSS-124SN | CSS-224SN | CSS-225SN | CSS-226SN | CSS-227SN | CSS-228SN |
|---|---|---|---|---|---|---|---|
| Numbers of rail | 1 | 1 | 2 | 2 | 2 | 2 | 2 |
| Diameter of saw | 10" ~ 12" | ||||||
| Maximum process in width | 762 mm / 30" | ||||||
| Range of process in length | 215 ~ 915 mm 8-1/2" ~ 36" |
215 ~ 1,220 mm 8-1/2" ~ 48" |
445 ~ 1,220 mm 17-1/2" ~ 48" |
445 ~ 1,525 mm 17-1/2" ~ 60" |
445 ~ 1,830 mm 17-1/2" ~ 72" |
445 ~ 2,135 mm 17-1/2" ~ 84" |
445 ~ 2,440 mm 17-1/2" ~ 96" |
| Spindle tilting angle | 360˚ | ||||||
| Numbers of saw motor | 2 HP (2P) x 4 PCS or (Optional accessory： 3 HP (2P) x 4 PCS) | ||||||
| Saw spindle running speed (50 / 60 HZ) |
3,000 RPM | ||||||
| Numbers of shaper motor | 3 HP (2P) x 2 PCS or (Optional accessory： 5 HP (2P) x 2 PCS) | ||||||
| Shaper spindle diameter | 30 mm or (Optional accessory： 40 mm) | ||||||
| Shaper spindle running speed | 7,200 RPM | ||||||
| Top air claming system (optional) | W / (Optional accessory) Max. process in width / 最大加工寬度：508 mm / 20" | ||||||
| Packing size (L x W x H) |
210 x 95 x 135 cm | 210 x 95 x 135 cm | 210 x 105 x 135 cm | 235 x 105 x 135 cm | 265 x 105 x 135 cm | 300 x 105 x 135 cm | 325 x 105 x 135 cm |
| N.W. / G.W . | 900 kgs / 970 kgs | 920 kgs / 990 kgs | 1,020 kgs / 1,090 kgs | 1,145 kgs / 1,245 kgs | 1,185 kgs / 1,285 kgs | 1,200 kgs / 1,300 kgs | 1,235 kgs / 1,335 kgs |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
Product Inquiry
| Image | Product Name |
|---|---|
|

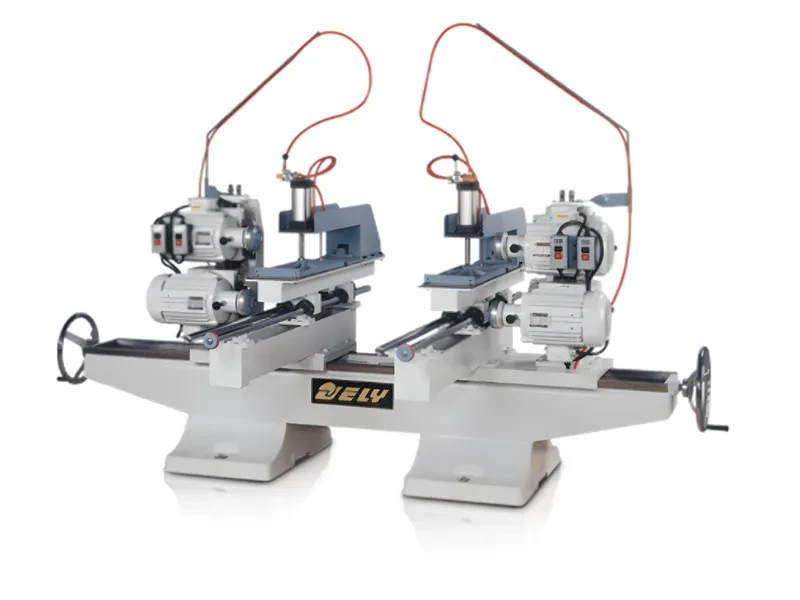

Manual Type Up and Bottom Double End Sawing Machine CSS-228SN |
