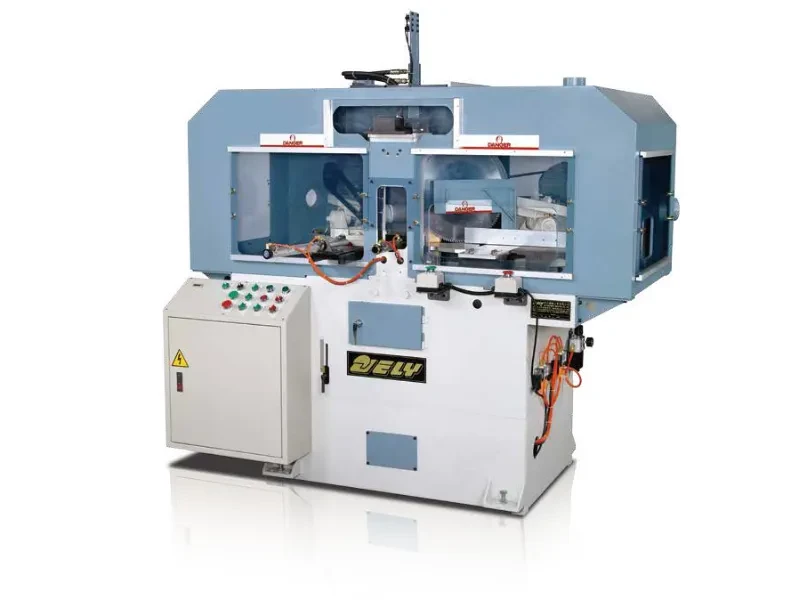

Multiple Double Miter Saw
Outstanding Features
• This double miter saw can cut the workpiece from 60 to 138 degree at both sides .
• All the functions are driver by oil pressure which can help to operate smoothly .
• Double starting switches and emergency stop switch are attached as standard accessory for humanistic handling.
• Convenient design is also enclosed with an ancillary counter which allows realizing the number of finished work pieces easily.
• It is designed with automatic PLC control system which concentrates most operat - ing in the computer panel with easily setting and convenient control.
• The main body of JCS-16 is made by cast iron and solid steel material; the tracking system is made by high quality of steel guide rod and liner ball bearing for longer machinery life.
• This double end sawing machinery is only suitable for woodworking processing; not for metal processing.
• Saw blade raising and lowering speed controls can be adjusted for different wood material cutting.
• The JCS-16 with double switch, that ensures the safety for the operator.
• The machine with Setting Stop for cutting multiple pieces of uniform length.
Applications
Specifications
| MODEL | JCS-16 |
|---|---|
| Left Angle of cutting | 17˚ ~ 60˚ |
| Right Angle of cutting | 25˚ ~ 60˚ |
| Cutting capacity | 115 mm (wide) x 115 mm (thick) |
| Spindle diameter | φ25.4 mm (φ1") |
| Spindle speed | 3,200 RPM (60HZ) |
| Production speed | 5 times / min |
| Motor | 2 HP x 2 |
| Air pressure required | 5 kg / cm² (71 psi / 5 bar) |
| Saw blade | 405 mm x φ25.4 mm x 120T (16" x φ1" x 120T) x 2 pcs |
| Hydraulic pump motor | 2 HP (4P) |
| Machine over size | 2,000 x 1,380 x 2,250 mm |
| Packing size ( L x W x H ) | 2,160 x 1,430 x 1,800 mm |
| N.W. / G.W. / CUFT | 1,500 kgs / 1,600 kgs |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
