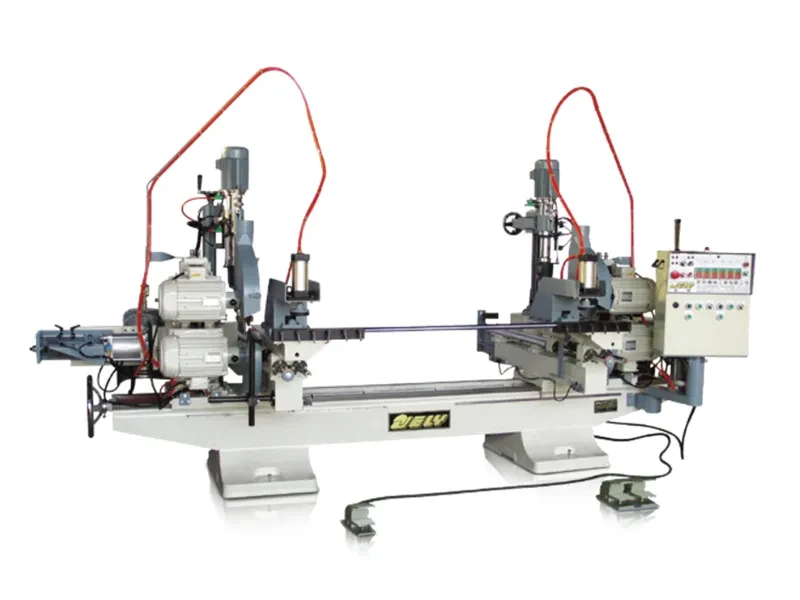

Semi-Auto. Double End Top & Bottom Sawing with Shaping with Boring Machine
Semi-Auto. Double End Top & Bottom Sawing with Shaping with Boring Machine
Type：CSSB-228SN
Automated Double End Sawing with Cross Boring and Shaping !
Outstanding Features
• The machine is specialized double ends cutting for setting length, also with both sides of shaping and top boring in one operation.
• The machine is designed with the top and side of automatic air clamping system.
• Double foot switches provides operators with convenient control for machine immediately stop and resetting star.
• The machine can be both side contemporary to operate, also can be separate to operate, high multifunction for operate!
• Using the Germany made linear bear provides highest operating accuracy.
• Double end saw blades can be tilted from 0°~45° degrees.
Applications
Specifications
| MODEL | CSSB-228SN |
|---|---|
| Numbers of rail | 2 |
| Diameter of saw | 10" ~ 12" |
| Working width | 250 mm / 10" |
| Working length | 2,400 mm / 94-1/2" |
| Numbers of saw motor | 2 HP (2P) x 4 PCS or (Optional accessory： 3 HP (2P) x 4 PCS) |
| Saw spindle running speed (50 / 60 HZ) | 3,000 RPM |
| Horizontal boring head motor | 3 HP (2P) x 2 PCS or (Optional accessory： 5 HP (2P) x 2 PCS) |
| Horizontal boring head stroke | 125 mm / 5" |
| Horizontal boring speed | 7,200 RPM |
| Vertical boring head motor | 1 HP x 2 PCS |
| Vertical boring head stroke | 70 mm / 2-4/5" |
| Vertical boring speed | 2,800 RPM |
| Vertical boring head | 2 CW26 x 2 |
| Air pressure required | 5 kg / cm² (71 psi / 5 bar) |
| Packing size (L x W x H) | 333 x 227 x 133 cm |
| N.W. / G.W . | 1,650 kgs / 1,850 kgs |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
