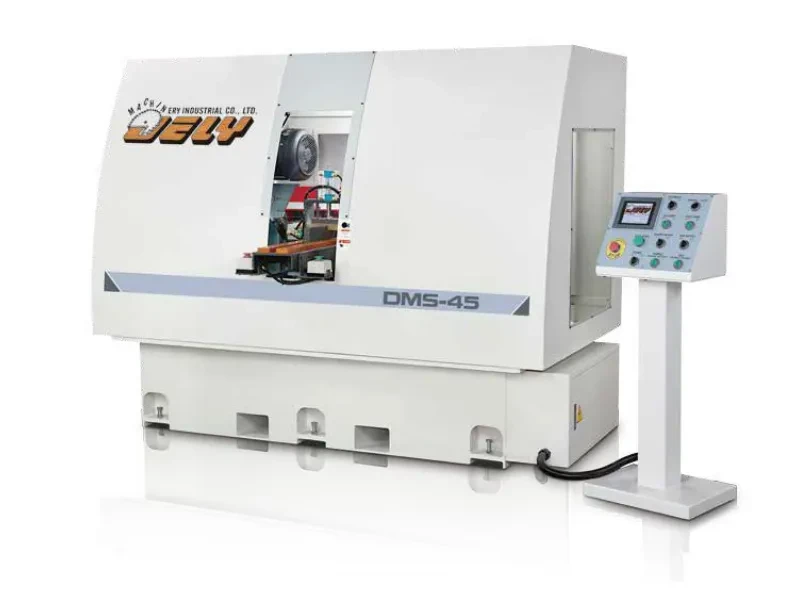

Single End Tenoner for Cupboard Door and Frame Processing
Outstanding Features
• This model is designed for produce tenoner of Cupboard Door, Picture Frame, and Photo Frame using a single end tenoner for wood joint processing.
• All of the machine motion controls are centralized on a control panel for maximum operational convenience.
The machine employs the Japanese made MITSUBISHI-PLC control for automatic operations. It upgrades operational convenience and efficiency.
• All machine motions are fully hydraulically operated.
• The machine with Up-Clamp and Both-Side-Clamp.
• All slide ways are using Germany made REXROTH-BOSCH liner rail, that with automatically lubricated.
• The both spindles mechanisms have mechanical meters, ensuring accurate positioning adjustment.
• Safety guards of both spindles are with the dust hood for milling that is stander equipment.

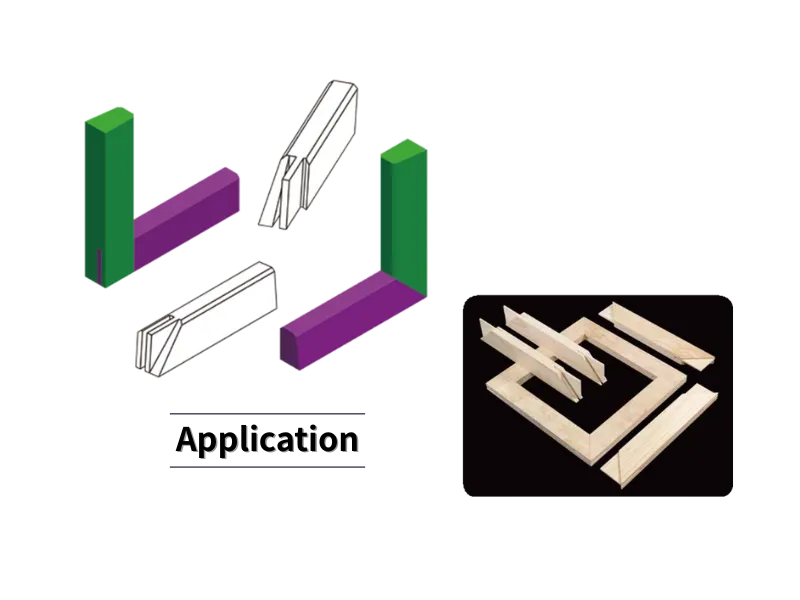

Applications
Specifications
| MODEL | DMS-45 |
|---|---|
| Min. working length | 400 mm |
| Max. working height | 90 mm |
| Max. working wide (DMS-45 is operate 2 wood piece, each one can working 35mm wide.) |
35 mm |
| Vertical clamp | 1 |
| Right clamp | 1 |
| Lift clamp | 1 |
| Cutter spindle | φ50 mm |
| Cutter motor | 10 HP |
| Sawing spindle | φ40 mm |
| Sawing motor | 7.5 HP |
| Hydraulic motor | 2 HP + 3 HP (2 pcs) |
| Machine size (L x W x H) | 2,600 x 2,160 x 1,900 mm |
| Packing size (L x W x H) | 2,990 x 2,100 x 2,080 mm |
| N.W./G.W./CUFT | 4,300 kgs / 4,566 kgs |
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
