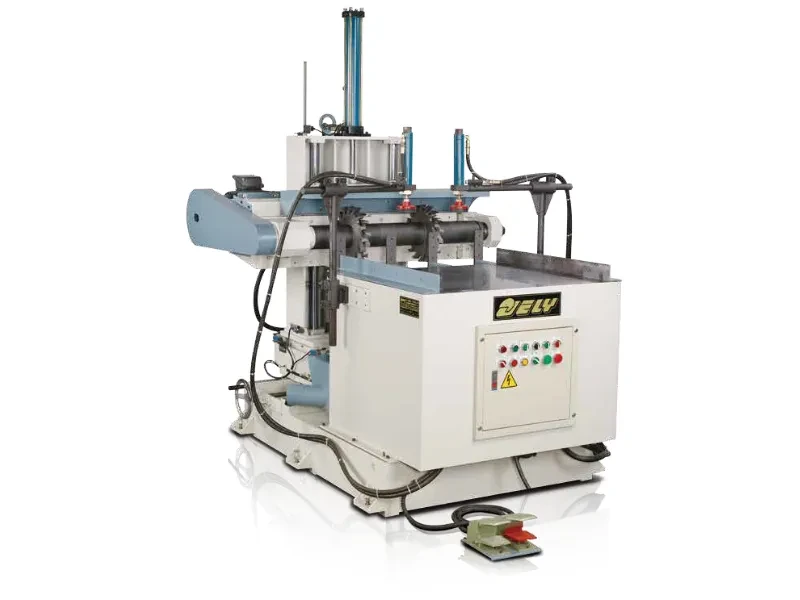

Single Vertical Shaper Machine for Wood Board Shaping
Outstanding Features
• This machine is specialized in center and both side angle cutting and shaping for flat board only as a vertical shaper machine designed for wood panel processing.

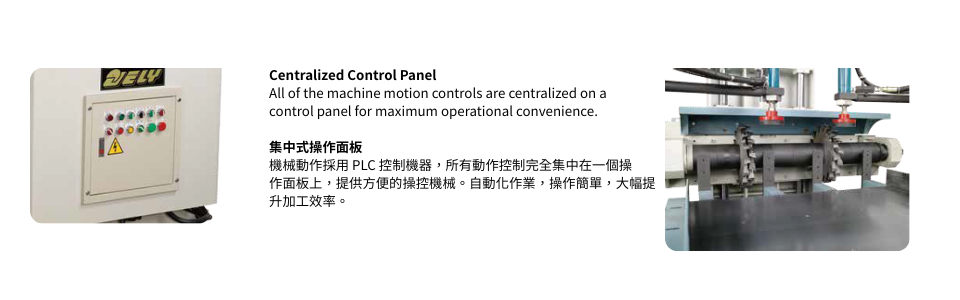

• All of operating and clamping are driven by oil pressure smoothly.
• Foot switch provides operators with convenient control for machine stop and start .
• Convenient design is also enclosed with an ancillary counter which allows realizing the number of finished work pieces easily .
• The main body of DM-300,DM-600 & DM-900 is made by accurate cast iron and solid steel; the spindle tracking system is also made by high quality of steel guide rod and liner ball bearing which can extend the life of machinery stability.

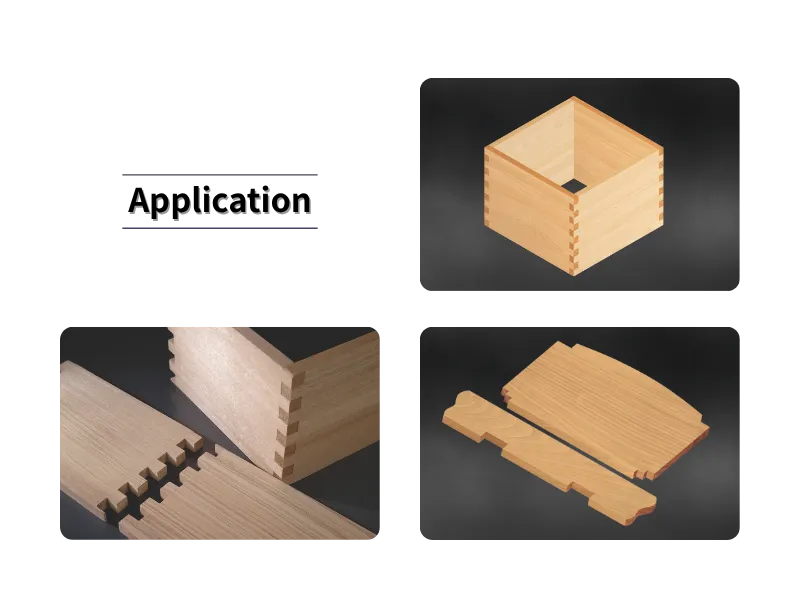

Applications
Specifications
| MODEL | DM-300 | DM-600 | DM-900 | |
|---|---|---|---|---|
| Working capacity | Board type | Flat board | ||
| Max. wide for work piece | 300 mm | 600 mm | 900 mm | |
| Max. thickness for work piece | 250 mm | |||
| Max.sharping deep for work piece | 70 mm | |||
| Vertical spindle | Blade diameter | s+d=φ250 mm | ||
| Spindle size | φ40 x 300(L)mm | φ70 x 600(L)mm | φ80 x 900(L)mm | |
| Spindle motor | 10 HP | 15 HP | 20 HP | |
| Spindle speed | 2,900 RPM | 3,150 RPM | ||
| Table | Table size | 800 x 800 mm | 1,000 x 800 mm | |
| Clamp | Number of clamps | 2 | ||
| Hydraulic system | Motor | 2 HP | 3 HP | |
| Fluid tank capacity | 90 liters | |||
| Packing information | Machine dimensions | 1,900 x 1,000 x 1,370 mm | 1,860 x 1,120 x 2,080 mm | 2,150 x 1,450 x 2,800 mm |
|
Packing size (L x W x H) |
1,970 x 1,080 x 1,370 mm | 1,930 x 1,200 x 2,580 mm | 2,210 x 1,490 x 2,060 mm | |
| N.W. / G.W . |
1,530 kgs / 1,580 kgs |
1,650 kgs / 1,730 kgs |
2,650 kgs / 2,760 kgs |
|
- JELY reserves the right to change or modify specification and system apperance without further notices. Actual system appearance may vary.
- 刀具不附，需看客戶提供圖面另外估價。
- Optional accessory: Cutter (NEED CUSTOMER DRAWING SIZE to Quotate)
Product Inquiry
| Image | Product Name |
|---|---|
|
Single Vertical Shaper DM-300/DM-600/DM900 |
